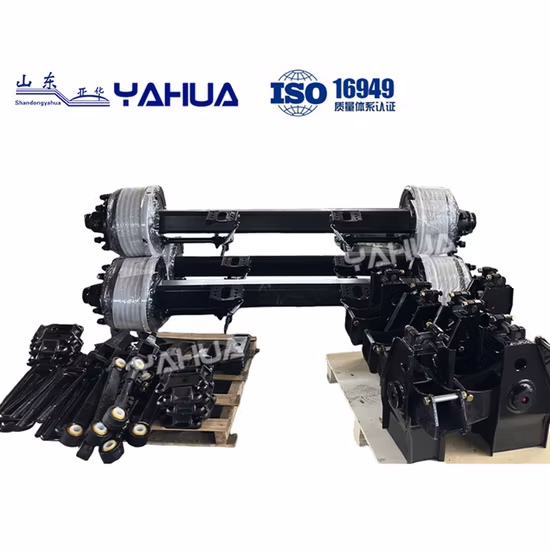

Trailer Part Trailer Axle American Type Axle with Good Price

Product DescriptionTrailer Part Trailer Axle American Type Axle with Good Price Our factory Loading Fair&Certifictae

DESCRIPTION

Model NO.	ZBJZ-1
Certification	ISO, ECE, Gcc, Ce, ISO9001, DOT, CCC, ISO/Ts16949
Material	Steel
Type	Rear Axles
Grade	Heavy Duty
Independent Suspension Type	Trailing Arm Type
Shape	Flatbed
Self-Dumping	Not Self-Dumping
ABS Anti-Lock Braking System	ABS Anti-Lock Braking System
Load Capacity	13t
Wheel Base	1840
Tread	1840
Tire Number	6
Transport Package	Pallet
Specification	13ton
Origin	Shan Dong China
HS Code	8708508100
Production Capacity	10000 Set/Sets / Month

Product DescriptionTrailer Part Trailer Axle American Type Axle with Good Price

Axle model	JZ11AWR1	JZ11AWR2	JZ11AWS1	JZ11AWS2	JZ11AWS3	JZ11AWS4
Rated loading capacity (kg)	11000	11000	11000	11000	11000	11000
Bearing	HM518445 /10	HM518445 /10	HM518445 /10	HM518445 /10	HM518445 /10	HM518445 /10
Wheel track (mm)	1820	1820	1840	1840	1840	1840
Brake size (mm)	Φ420×180	Φ420×180	Φ420×180	Φ420×180	Φ420×180	Φ420×180
Center distance of brake chamber (mm)	390	390	410	410	410	410
Wheel fixing (P.C.D.×H, mm)	Φ285.75 ×Φ221	Φ335 ×Φ281	Φ285.75 ×Φ221	Φ335 ×Φ281	Φ285.75 ×Φ221	Φ335 ×Φ281
Wheel bolt size	8-M20×1.5 JAP	10-M22×1.5 ISO	10-M20×1.5 JAP	10-M22×1.5 ISO	10-M20×1.5 JAP	10-M22×1.5 ISO
Axle tube size (mm)	127	127	127	127	127	127
Camshaft length (CL, mm), spline number	588, 1.625 '- 37 spline	588, 1.625 '-37 spline	588, 1.625 '- 37 spline	588, 1.625 '- 37 spline	588, 1.625 '- 37 spline	588, 1.625 '-37 spline
Weight (kg)	298	300	310	310	335	335
Recommended wheel	>=7.50V-20	>=7.50V-20	>=7.50V-20	>=7.50V-20	>=7.50V-20	>=7.50V-20
Max. length (mm)	≈2183	≈2183	≈2203	≈2203	≈2203	≈2203
